Bodet Harmonys

IP Public Address System


Harmonys is a range of IP audio systems for broadcasting sch​eduled bells, music, general announcements or messages.



They can be triggered manually via the IT network or remotely using a remote control or smartphone

The Harmonys offers a complete lockdown alert system to strengthen safety should an incident occur on school property

Includes Smartphone Integration


Harmonys Notify App

Harmonys notify is a free app that allows you to schedule and trigger your alarms and alerts such as a Lockdown or Evacuation procedure remotely from your smartphone


Harmonys Talk App

Harmonys Talk is a free app that allows you to broadcast microphone announcements using your smartphone. You can make live or pre-recorded announcements to all sounders or the sounders in certain zones.

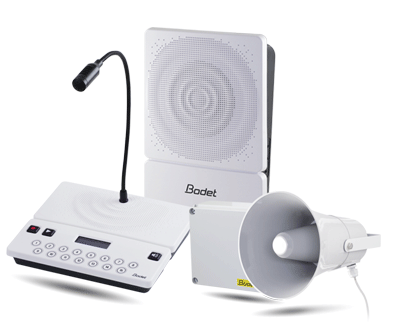

Harmonys Product Range

Harmonys Microphone


The Harmonys microphone can be used to broadcast live or recorded announcements throughout a site or within a specific zone. With a capacitive keyboard the microphone offers a practical and ergonomic design

- Screen to view the name of calling areas
- Speaker to play back messages
- 2 models: 8 or 15 zones
- 3 function buttons to record, broadcast live messages and broadcast recorded messages
- Configurable jingle played before the spoken message

Technical Features
- Power supply: PoE (Power over Ethernet)
- Output level: 58dB
- Protection index: IP31
- Dimensions: H34/23 x W198 x D167mm
- Power: 8W


Indoor Wall-mounted IP/POE Speaker

The range of Harmonys Sounders emits programmed or manually-controlled bell sounds, public announcements and audio streams which are sent from a computer.

- The sounders are controlled by a Bodet Sigma master clock
- Stores up to 30 MP3 bell sounds
- 18 pre-installed bell sounds
- Associated with a zone
- 8 volume levels

Technical Features
- Power supply: PoE (Power over Ethernet)
- Output level: 90dB
- Protection index: IP31
- Dimensions: H230 x W163 x D80/50mm
- Power: 13W


Indoor Ceiling-mounted IP/POE Speaker

The ceiling-mounted sounder has a discreetdesign and sound quality suitable for programmed melodies, class change bells, public announcements and audio streams in schools

​- The sounders are controlled by a Bodet Sigma master clock
- Stores up to 30 MP3 bell sounds
- 18 pre-installed bell sounds
- Associated with a zone
- 8 volume levels

Technical Features
- Power supply: PoE (Power over Ethernet)
- Output level: 90dB
- Protection index: IP31
- Dimensions: H175 x W175 x D67mm
- Power: 13W

Outdoor IP Sounder


The Harmonys outdoor sounder has a protection index of IP54 and operates at temperatures of between -30 and +85℃. This sounder is perfectly designed for outdoor school playgrounds.

- The sounders are controlled by the a Bodet Sigma master clock
- Stores up to 30 MP3 bell sounds
- 18 pre-installed bell sounds
- Associated with a zone
- 8 volume levels
- Version with 2 speakers available

Technical Features
- Power supply: 110-240VAC
- Output level: 110 dB
- Protection index: IP54
- Dimensions HP:H254 x ⌀203mm. Dimensions controller: H195 x W250 x D97.5mm
- Power: 13W

Harmonys Control Box


The control box is used for the manual activation of bell sounds and emergency procedure alerts.

- Power supply: PoE (Power over Ethernet)
- Protection index: IP41
- Dimensions: H88 x W167 x D50mm
- Power: 2W

Technical Features
- STOP function: manual stoppage of the tune during reading in one or more zones
- Button action configurable using SIGMA software in automatic mode or SIGMA
- Onboard Web server to access product configuration and identifications
- Possibility of adding an extension box with 4 additional buttons

Installation

Installation of the IP/Network Based Harmonys system is easy with the use of an existing computer network, and powered by PoE cabling.
​The Bodet Sigma software is used to programme and control the Harmonys equipment installed around the school
